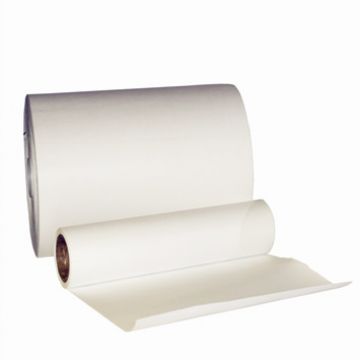

Liquid filtration flat membrane - TF Series

Technical Data

Product Model	X1100	X1040	X1020	X1010
Pore Size (μm)	1.0	0.45	0.22	0.10
Absolute Ethanol First Bubble Pressure (MPa)	0.03	0.07	0.12	0.16
Water Flow Rate （m³/m²·hr@0.02MPa, 25℃）	8.0	4.0	3.0	1.0
Reinforcement Material	Non(1), PP(3), PET(4)
Thickness (μm)	20 ~ 200

Explanation:

1. Product implementation standard: QB/T01-2015 "PTFE microporous membrane"

2. The above first bubble pressure and flow rate data are typical values

3. The X in the product model row indicates reinforement material
